Closed End Connectors

PRODUCT NAME:

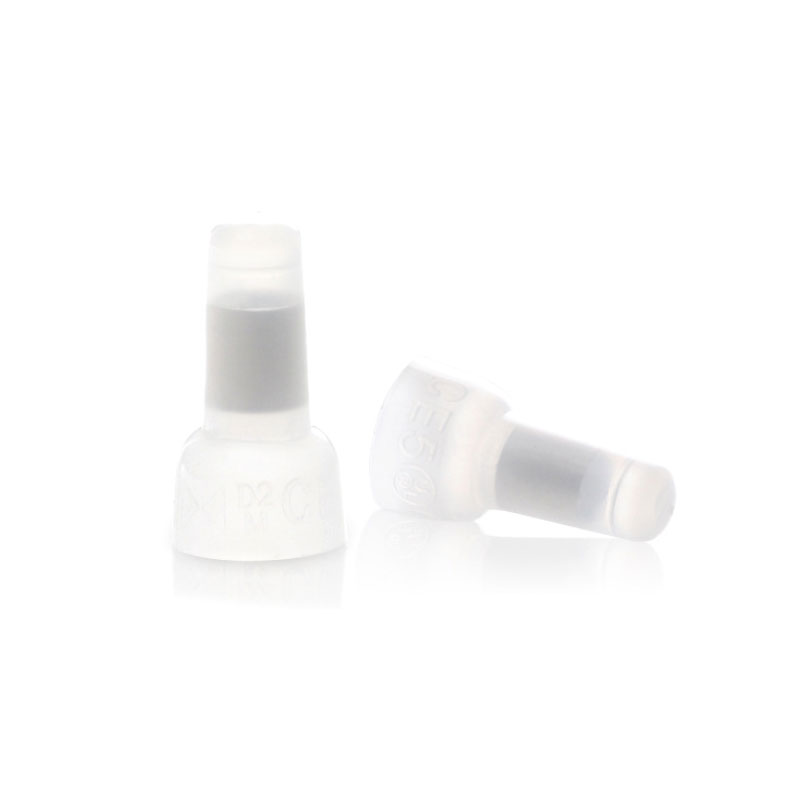

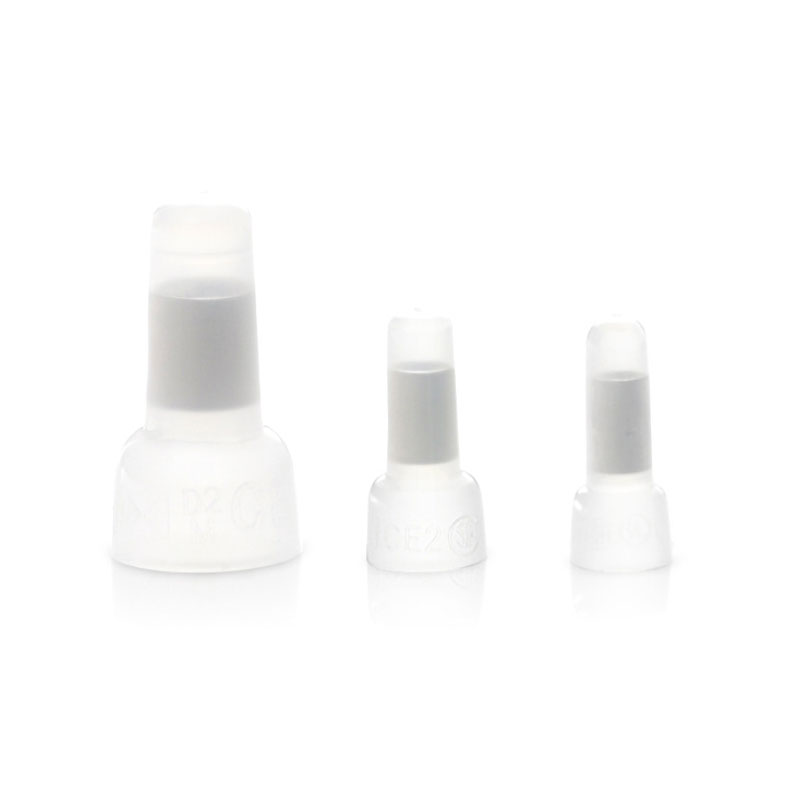

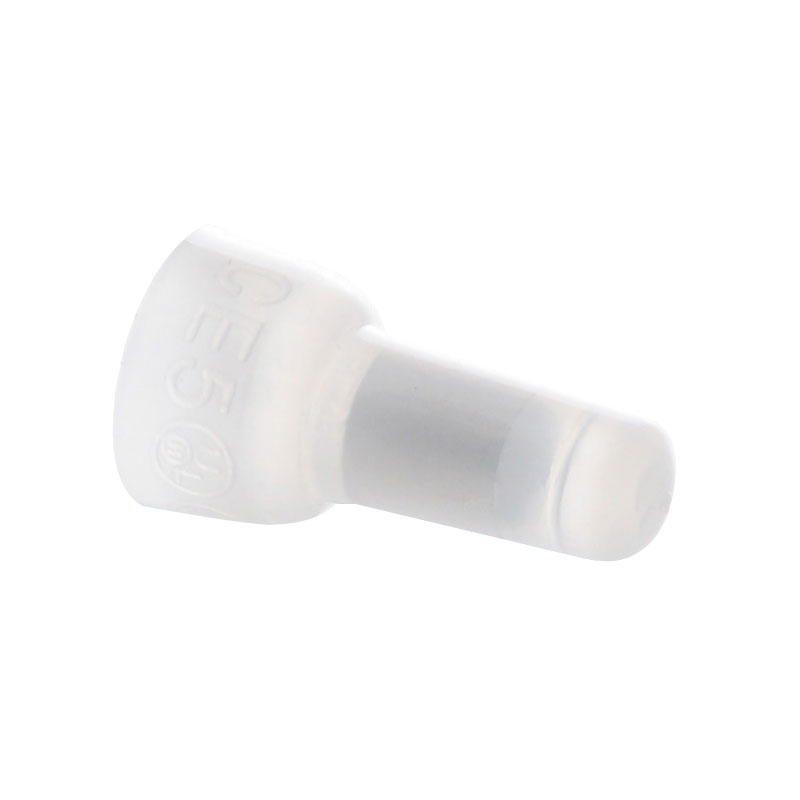

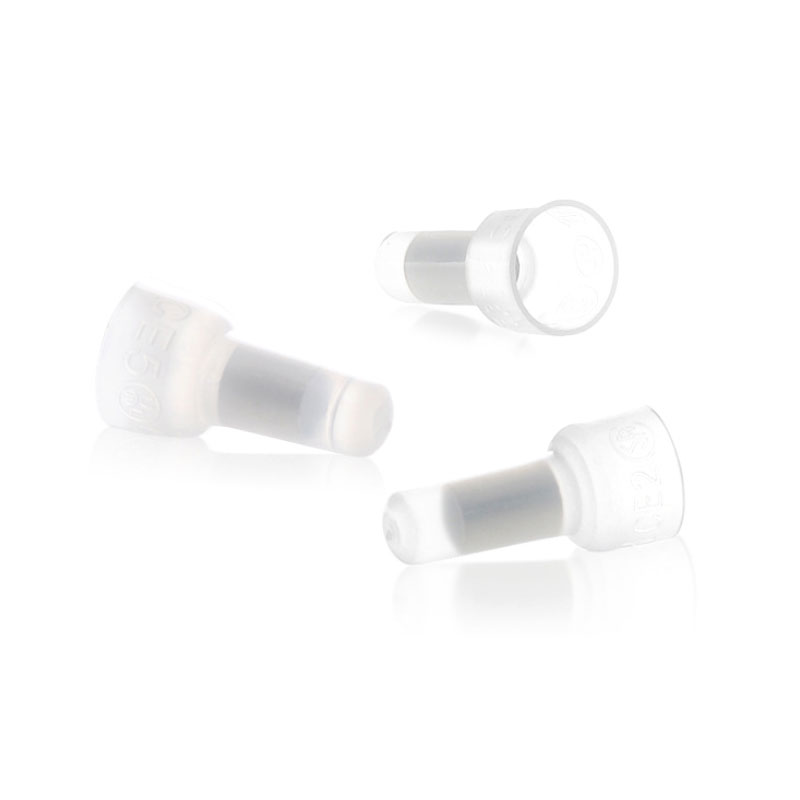

Closed End Connectors
PRODUCT MODEL:
CONTACT US:
Tel : +008615669851253
TEL : +0086057762711310
E-mail : sales@txele.cc
Skype : DIHOOL
INQUIRY

Product Parameter

Two guarantees - to eliminate hidden dangers, secure connection
1. Red copper or brass
Terminals are made of high quality red copper or brass, which has better electrical conductivity and long service life.
2. Easy installation
First use wire stripper to push the wire aside, then use the pliers to crimp the wires and cold pressing terminals, and finally fixed on the components or equipment.

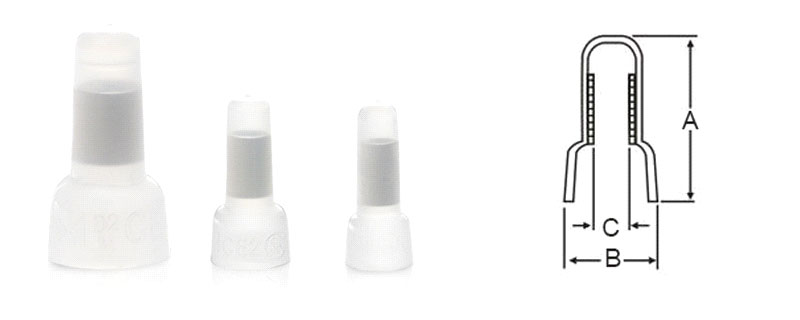

Technical Drawing

Structure Diagram (mm)

Item No Height
A
Width
B
Metal diameter
C
Wire Range Packing
Square wire A.W.G Stranded wire
CE-1 17.8 6.2 2.6 1.25 22-16 0.5-1.75 1000pcs
CE-2 18.6 7.9 3.0 2.0 16-14 1.0-3.0
CE-5 24.0 10.5 4.5 5.5 12-10 2.5-6.0
