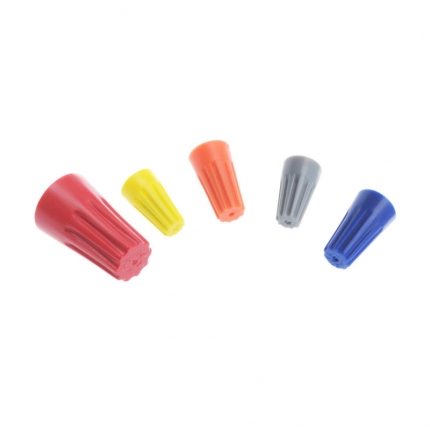

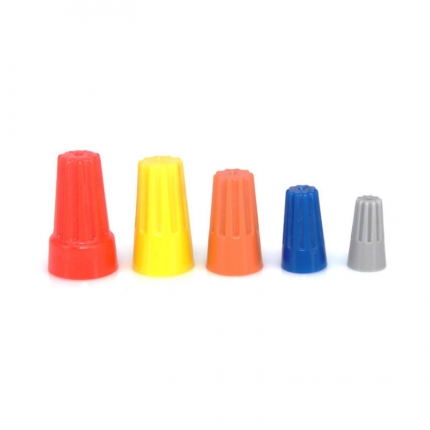

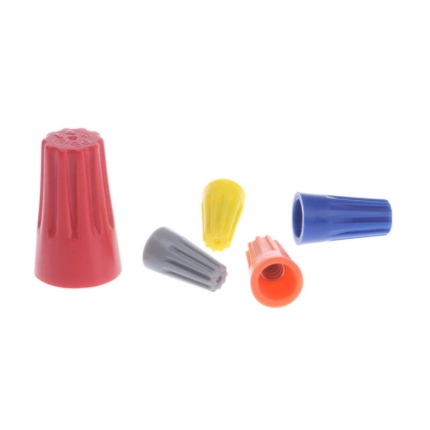

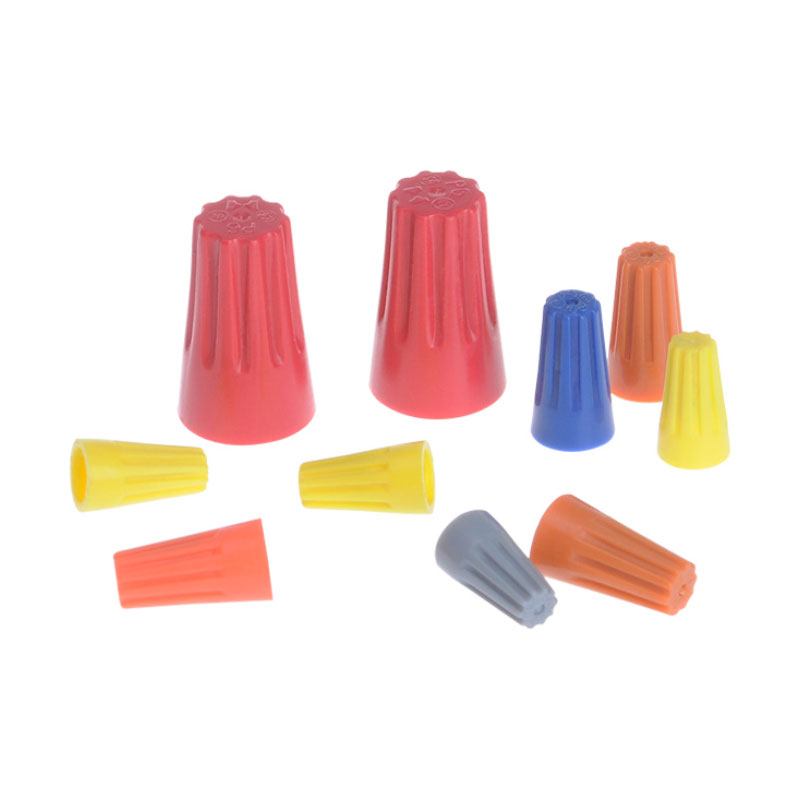

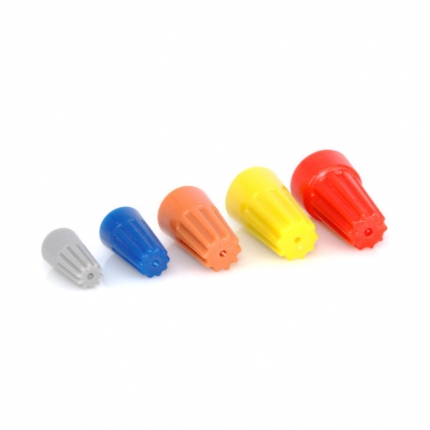

SP Electrical Wire End Caps

PRODUCT NAME:
SP Electrical Wire End Caps
PRODUCT MODEL:
CONTACT US:
Tel : +008613356192265
TEL : +0086057762711310
E-mail : sales@txele.cc
Skype : chinacuze
INQUIRY

Product Parameter

Two guarantees - to eliminate hidden dangers, secure connection
1. Red copper or brass
Terminals are made of high quality red copper or brass, which has better electrical conductivity and long service life.
2. Easy installation
First use wire stripper to push the wire aside, then use the pliers to crimp the wires and cold pressing terminals, and finally fixed on the components or equipment.

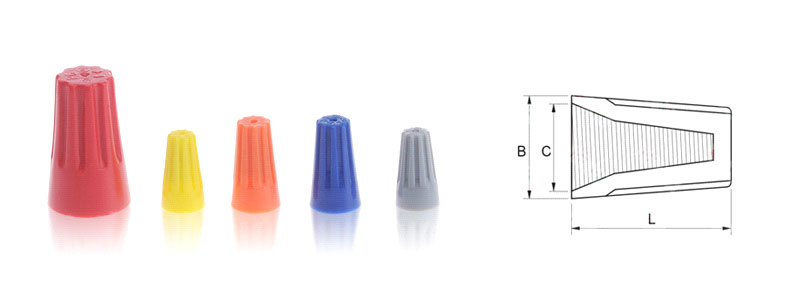

Technical Drawing

Structure Diagram (mm)

Item No Wire Range Packaging
pcs / pack
Dimension(mm) Color
B C L
SP1 Min 0.75×1+0.5×1, Max 1.5×2 1000 8.5 6.7 15.0 Grey
SP2 Min 0.75×3, Max 1.5×3 1000 10.1 7.4 17.5 Blue
SP3 Min 0.75×3, Max 1.5×3+1×1 500 12.6 9.9 22.1 Orange
SP4 Min 0.25×1+0.75×1, Max 2.5×4+0.75×1 500 13.7 10.0 24.5 Yellow
SP5 Min 0.25×2, Max 6×2+4×2 500 16.0 13.0 26.5 Red
