EB-10 Insertion Bridge

PRODUCT NAME:
EB-10 Insertion Bridge
PRODUCT MODEL:
CONTACT US:
Tel : +008613356192265
TEL : +0086057762711310
E-mail : sales@txele.cc
Skype : chinacuze
INQUIRY

EB-10-5 Insertion Bridge

EB-10-5 insertion bridge is suitable for parallel use of rail terminals (universal with UK3N, MBKKB2.5) with terminal thickness of 5.2mm, 10-pos.

Technical Drawing

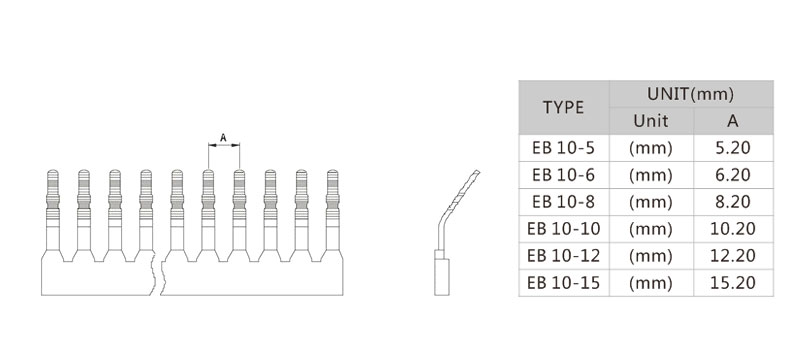

Structure Diagram (mm)

EB-10-6 Insertion Bridge

EB-10-6 insertion bridge is suitable for parallel use of rail terminals (universal with UK2.5B, UK5N, UDK4, UKK5, UK5-TWIN and other terminals) with terminal thickness of 6.2mm, 10-pos.

Technical Drawing

Structure Diagram (mm)

EB-10-8 Insertion Bridge

EB-10-8 insertion bridge is suitable for parallel use of rail terminals (universal with UK6N, URTK/S and other terminals) with terminal thickness of 8.2mm, 10-pos.

Technical Drawing

Structure Diagram (mm)

EB-10-10 Insertion Bridge

EB-10-10 insertion bridge is suitable for parallel use of rail terminals (universal with UK10N) with terminal thickness of 10.2mm, 10-pos.

Technical Drawing

Structure Diagram (mm)
