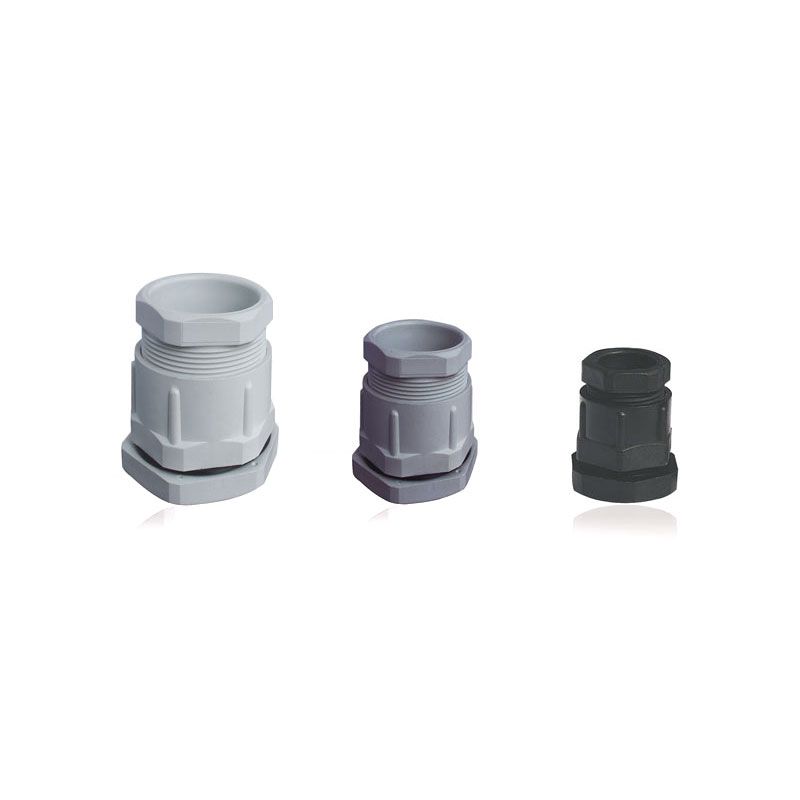

PG-L Nylon Compression Cable Gland

PRODUCT NAME:
PG-L Nylon Compression Cable Gland
PRODUCT MODEL:
CONTACT US:
Tel : +008613356192265
TEL : +0086057762711310
E-mail : sales@txele.cc
Skype : chinacuze
INQUIRY

Product Specifications

Material: Nylon Plastic (PA)
Seals: NBR
Protection Degree: IP68
Temperature Environment: Static -40℃ to 100℃, short time to 120℃; dynamic -20℃ to 80℃, short time to 120℃.

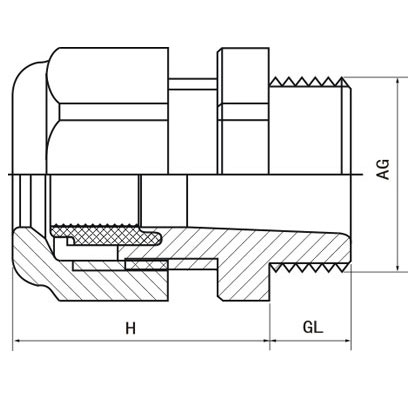

Model AG (PG) Cable Range mm

GL mm

Wrench Diameter mm
PG-L7 PG7 5-7 8 15/19
PG-L9 PG9 6-8 8 19/22
PG-L11 PG11 8-10 8 22/24
PG-L13.5 PG13.5 10-12 9 24/27
PG-L16 PG16 12-14 10 26/30
PG-L21 PG21 15-17 11 32/35
PG-L29 PG29 24-26 11 42/46
PG-L36 PG36 31-33 13 52/59
PG-L42 PG42 39-41 13 59/65
PG-L48 PG48 45-47 14 65/70
