Portable Waterproof Socket Box

PRODUCT NAME:
Portable Waterproof Socket Box
PRODUCT MODEL:
CONTACT US:
Tel : +008615669851253
TEL : +0086057762711310
E-mail : sales@txele.cc
Skype : DIHOOL
INQUIRY

Product Specifications

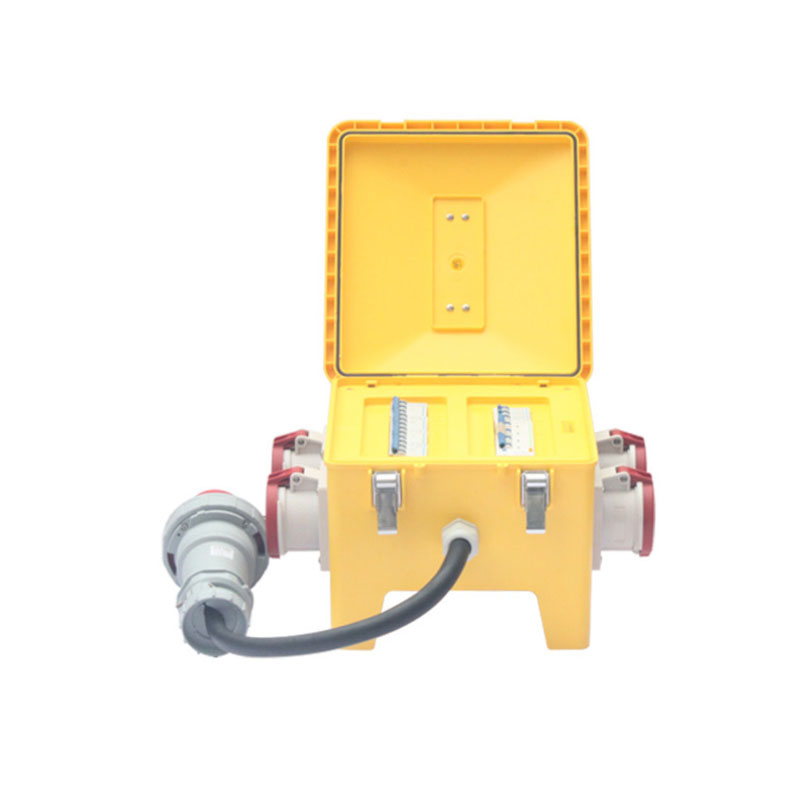

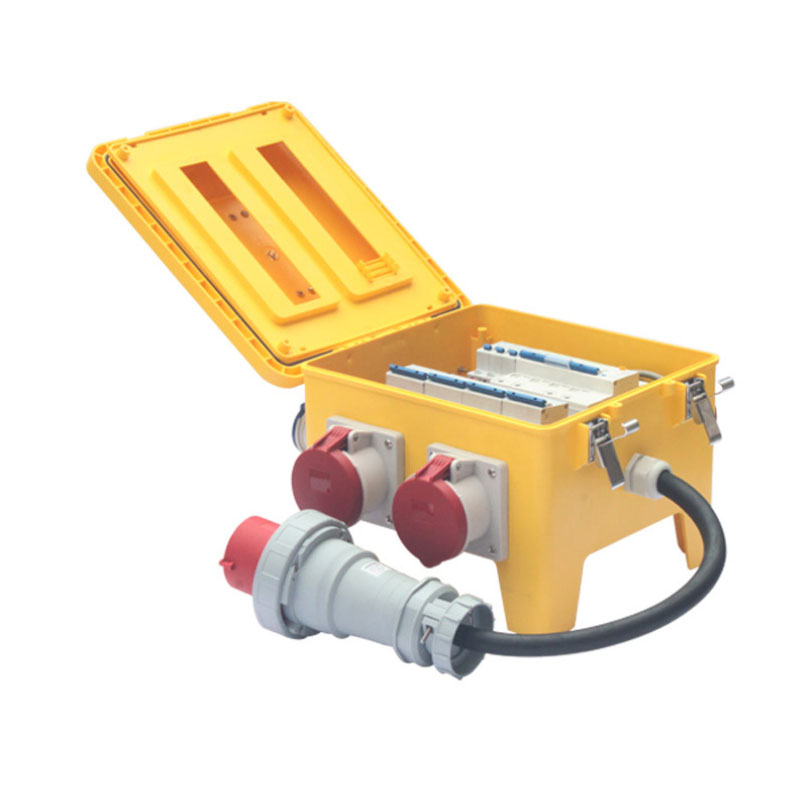

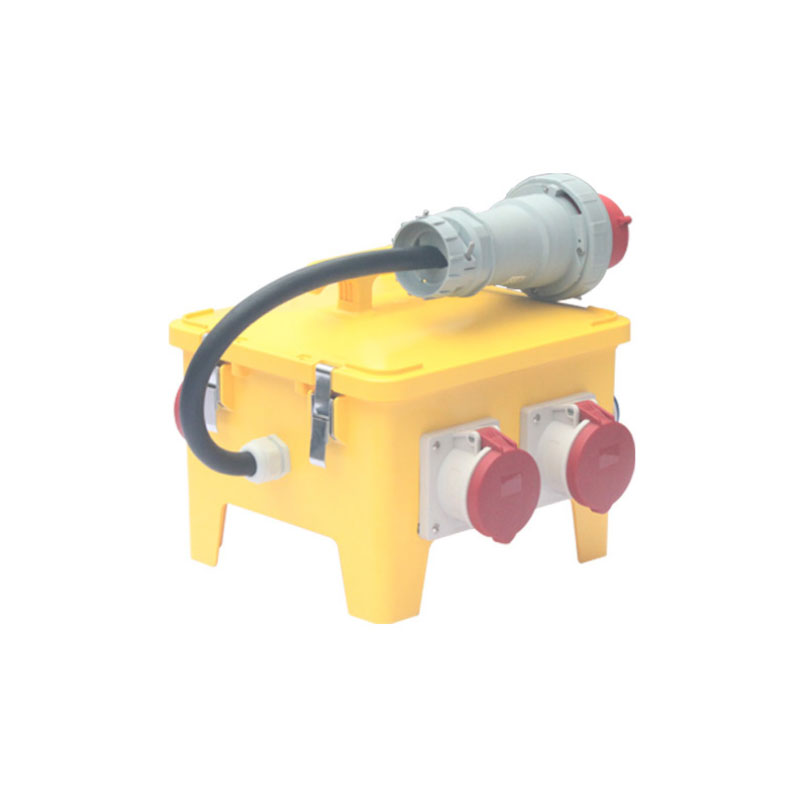

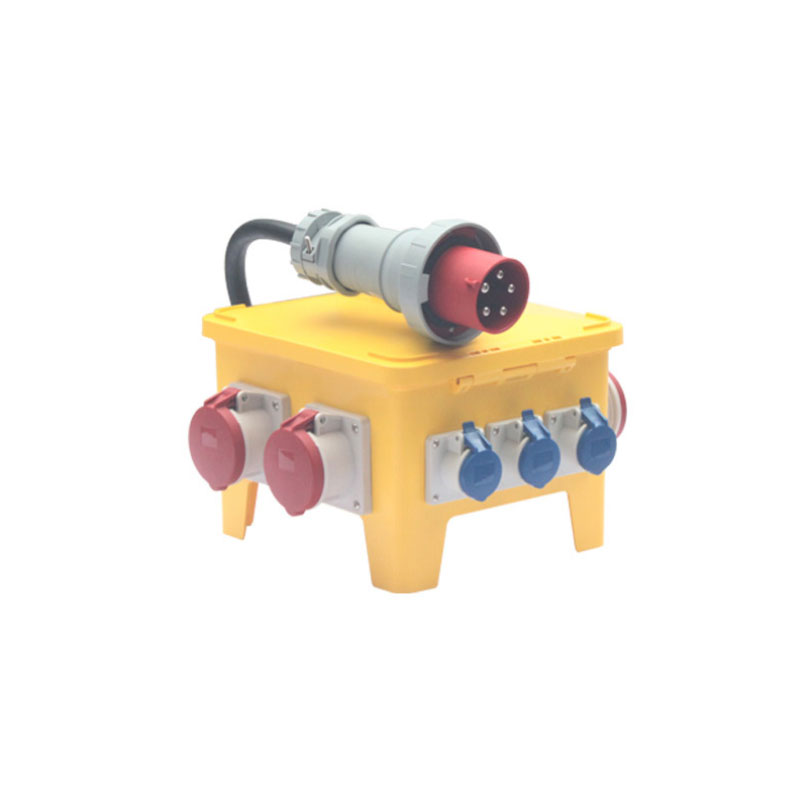

12POLES/12P/ High Quality Distribution Box with CEE Sockets 16A 3P & Schuko(DIN 49440) Sockets 16A 3P IP44 A12MB06-4

☆ Type (Model): A12MB06-4

Dimension 293.7*220.0*279.0
Input 1pcs CEE plug HTN013   3G2.5sq mm cable 2.2M
Output 4pcs HTN413 16A 3P IP44
Protection Fuse 1pcs RCD 40A 2P 0.03A 400V~
4pcs MCB 16A 2P
● The box could include 12pcs of 1P MCB (the width of 1P MCB is 18mm)
● The Socket (SCHUKO) could be changed to British, French, Danish, Swiss and Australian Sockets

★ Pre-wired for Installation
★ Fusing under the cover
★ Can be locked by a padlock
★ Protection degree: IP44 (splashproof)
★ Material: Flame Retardant Thermoplastic RoHS Reach
★ Operation Temperature: -25℃~+40℃
★ Certificates: S, CB, CE, TUV, ISO9001:2008, RoHS, REACH
★ Standards: IEC/EN60439-1, IEC/EN60439-4
★ Package: Polybag + 1pcs/Inner Box + 2pcs/Export carton

> Distribution boxes for flexible current supply, portable and handy;
> High resistance to weathering and chemicals;
> All combinations are tested for electrical safety and quality;
> IP44, IP55, IP66 protection degree against dust and liquid bodies;
> IK8 mechanical protection degree;
> High quality thermoplastic material;
> Available component preset as requested;
> Widely used in the following sites, such as: Repair, extension and demolition, work on existing buildings, Construction sites, Exhibition center, Factories…
