Product Specifications
Thread: PG, Metric, G, and NPT thread

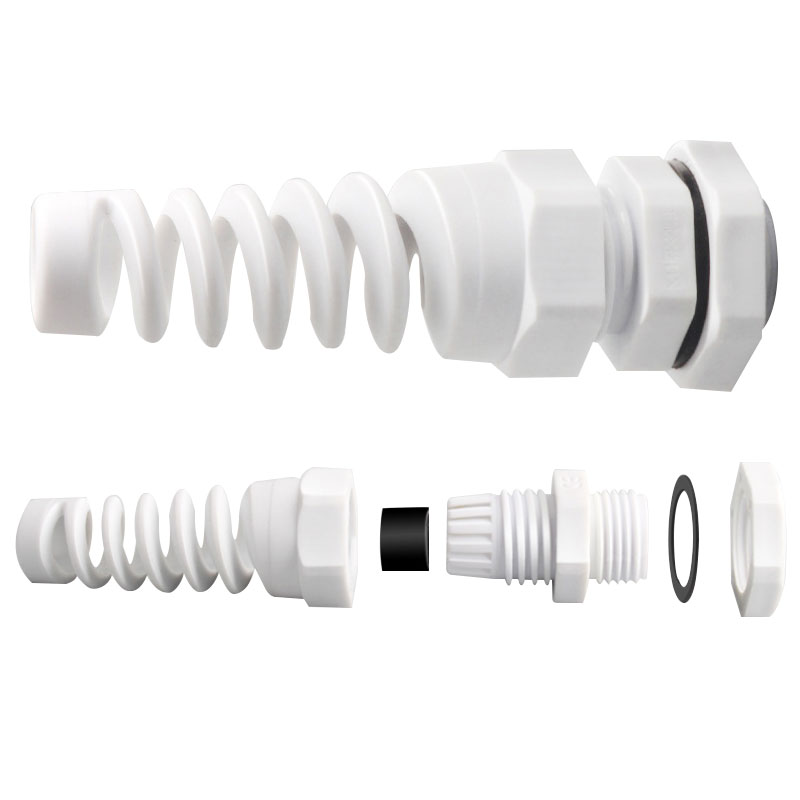

Materials: UL approved Nylon PA66 (Flammability UL 94V-2) for A. C. E parts, (Accept to make flammability UL 94V-0 ); EPDM rubber for B. D parts, (Also accept to make super rubber: resist high temperature rubber, resist strong acid/alkali,etc).
Protection degree: IP68
Working temperature: -40℃ to 100℃
Features: The claws and seals of excellent design, sealing nut have a “click”sound and re-open, can hold cable firmly and have a wider cable range. Resistant to salt water, weak acid, alcohol, oil, grease and common solvency.
Colors: Black(RAL9005), gray(RAL7035),other color available upon request.
| PG Type |
Product Model |
Cable Range |

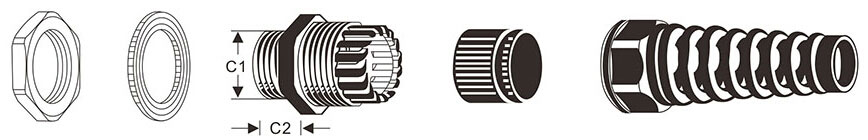

Thread Diameter
(C1) |
Thread Length
(C2) |
Wrench Diameter |
| PG7 |
3~6.5 |
12.5 |
8 |
16 |
| PG7 |
2~5 |
12.5 |
8 |
16 |
| PG9 |
4~8 |
15.2 |
8 |
19 |
| PG9 |
2~6 |
15.2 |
8 |
19 |
| PG11 |
5~10 |
18.6 |
8 |
22 |
| PG11 |
3~7 |
18.6 |
8 |
22 |
| PG13.5 |
6~12 |
20.4 |
9 |
24 |
| PG13.5 |
5~9 |
20.4 |
9 |
24 |
| PG16 |
10~14 |
22.5 |
10 |
27 |
| PG16 |
7~12 |
22.5 |
10 |
27 |
| PG21 |
13~18 |
28.3 |
10 |
33 |
| PG21 |
9~16 |
28.3 |
10 |
33 |
| M Type |
Product Model |
Cable Range |
Thread Diameter
(C1) |
Thread Length
(C2) |
Wrench Diameter |
| M12×1.5 |
3~6.5 |
12 |
8 |
16 |
| M12×1.5 |
2~5 |
12 |
8 |
16 |
| M16×1.5 |
4~8 |
16 |
8 |
19 |
| M16×1.5 |
2~6 |
16 |
8 |
19 |
| M18×1.5 |
5~10 |
18 |
8 |
22 |
| M18×1.5 |
3~7 |
18 |
8 |
22 |
| M20×1.5 |
6~12 |
20 |
9 |
24 |
| M20×1.5 |
5~9 |
20 |
9 |
24 |
| M22×1.5 |
10~14 |
22 |
10 |
27 |
| M22×1.5 |
7~12 |
22 |
10 |
27 |
| M25×1.5 |
13~18 |
25 |
10 |
33 |
| M25×1.5 |
9~16 |
25 |
10 |
33 |
| M27×1.5 |
13~18 |
27 |
10 |
33 |
| M27×1.5 |
9~16 |
27 |
10 |
33 |
