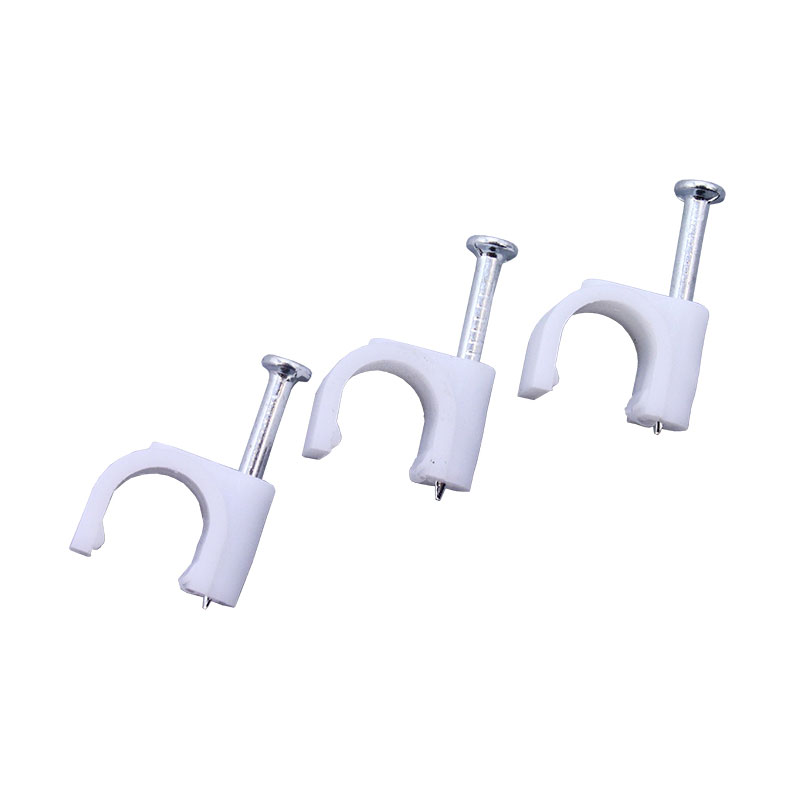

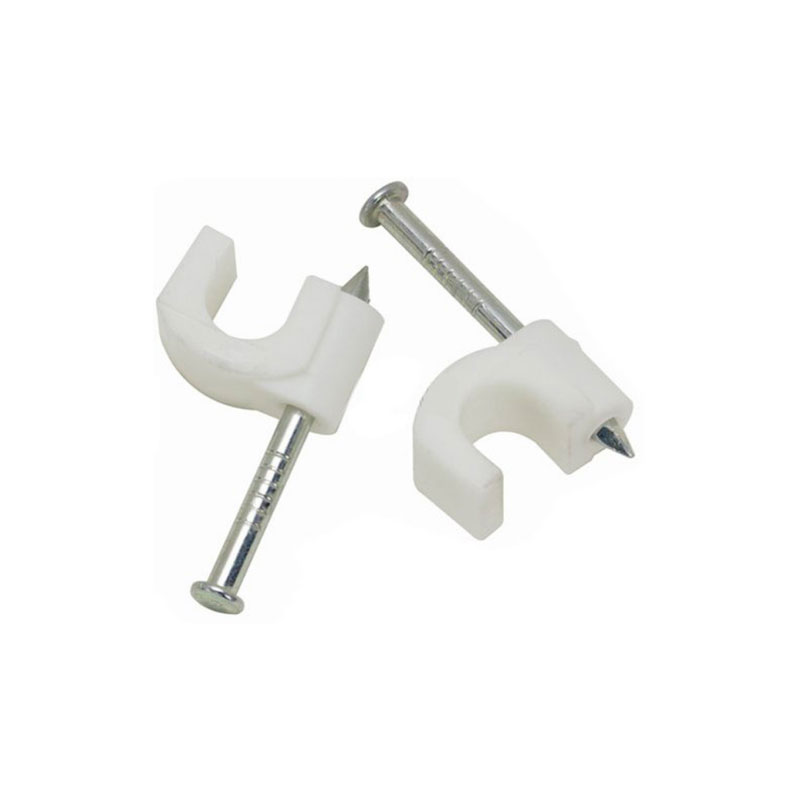

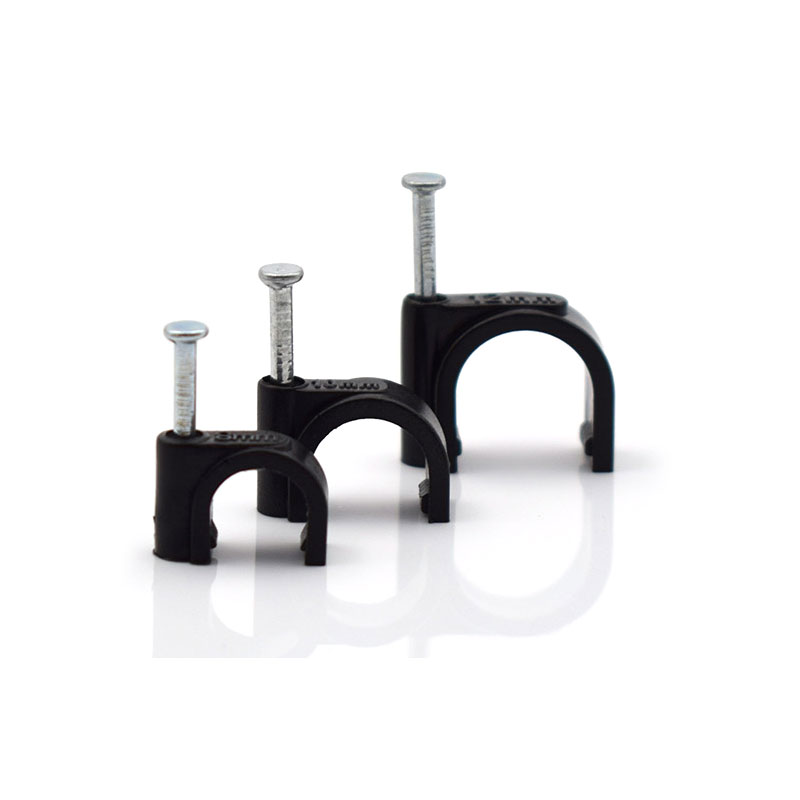

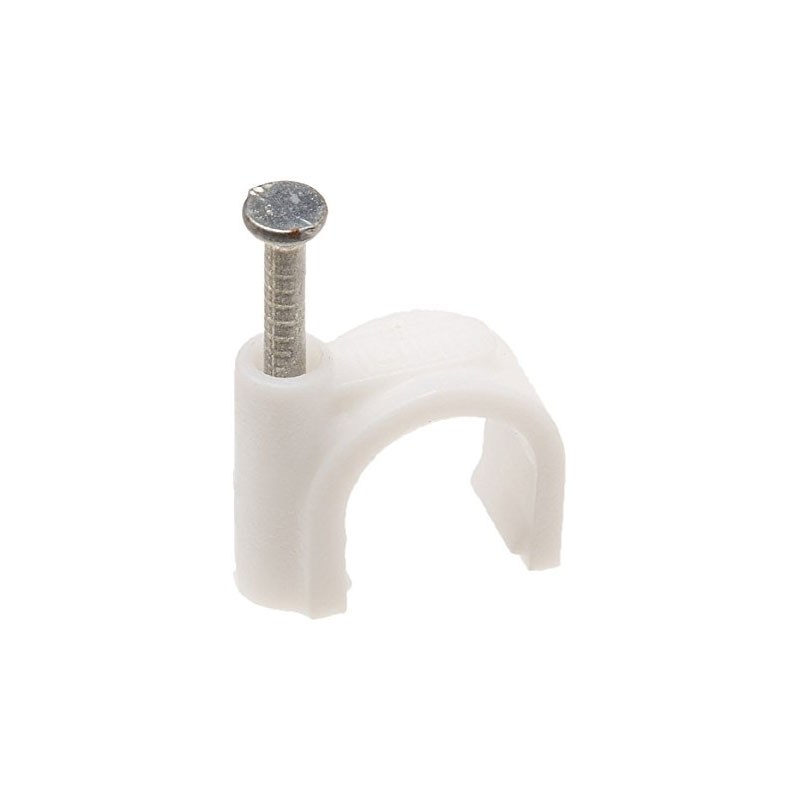

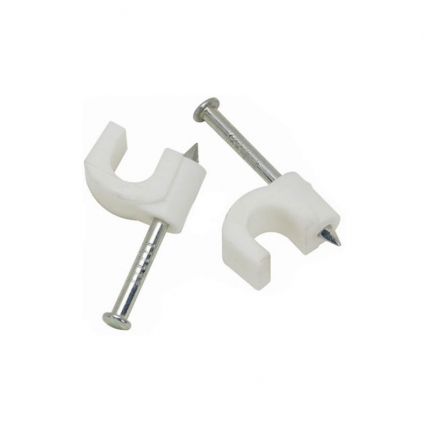

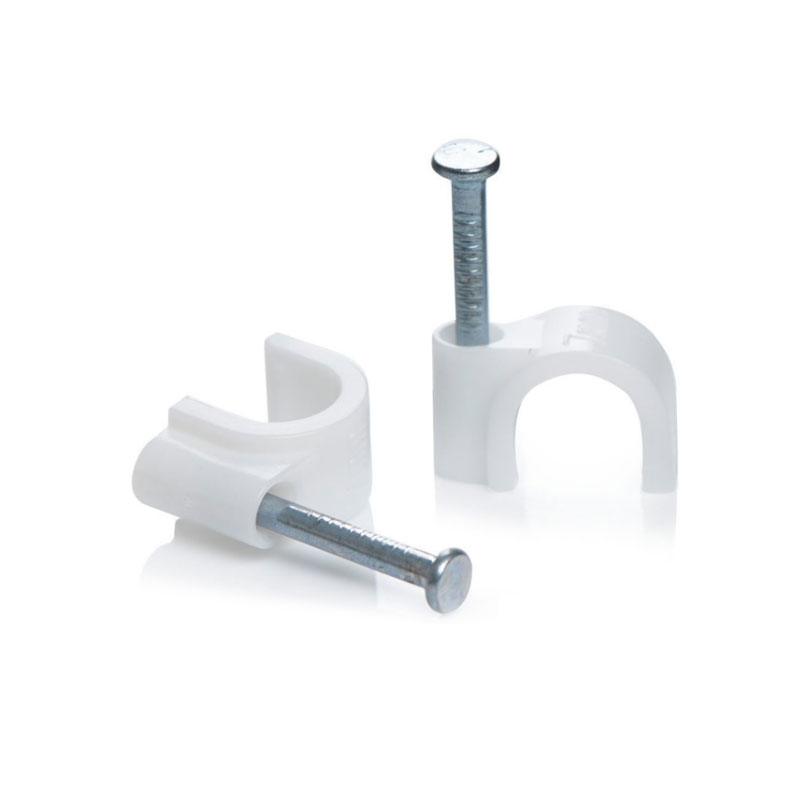

Circle Cable Clips With Steel Nail

PRODUCT NAME:
Circle Cable Clips With Steel Nail
PRODUCT MODEL:
CONTACT US:
Tel : +008615669851253
TEL : +0086057762711310
E-mail : sales@txele.cc
Skype : DIHOOL
INQUIRY

Product Specifications

Fixable, good elasticity to bear collision, unable broken.
Inserted nail, nail stick to plastic seat, save time and cut down.

Material: PE, (Nail) Medium carbon steel.

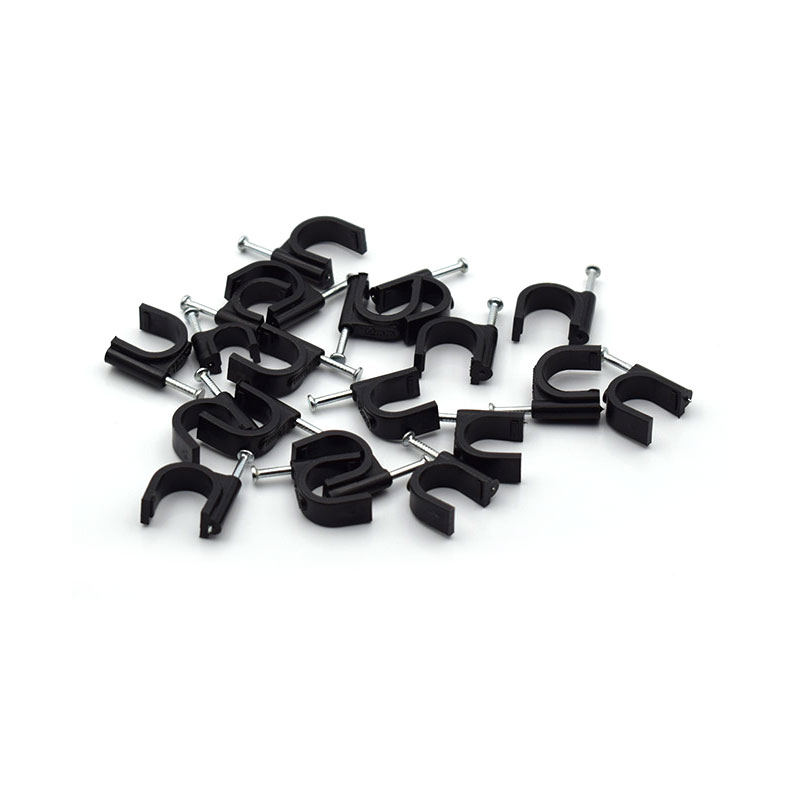

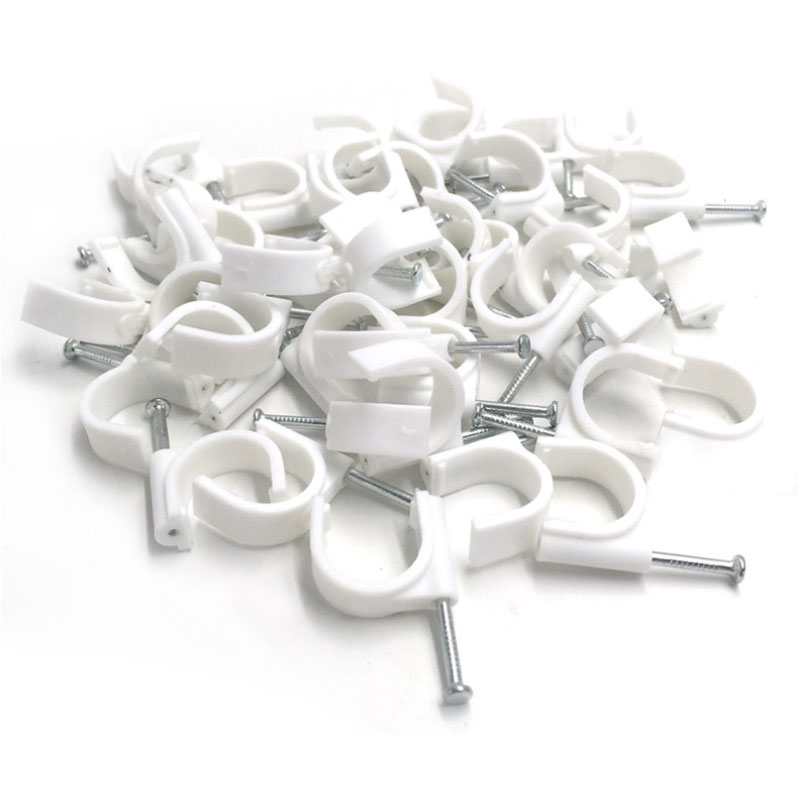

Color: Mostly grey and white, other colors are also available

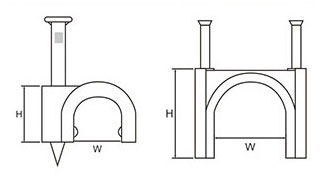

Item No. H
(mm)
W
(mm)
Nail Size
(mm)
Color
Betan Round 4.6 7.4 1.6×16 White
Grey
Red
Blue
Black
Betan Rectangular 3.2 5.9×11.7 1.6×16
THR-2.5 3.6 2.5 1.47×14
THR-3.5 4.2 3.5 1.47×14
THR-4 5.3 4.0 1.6×16
THR-5 6.0 5.0 1.6×16
THR-6 8.0 6.0 1.8×18
THR-7 8.7 7.0 1.8×18
THR-8 9.5 8.0 1.9×19
THR-9 11.0 9.0 2.0×22
THR-10 12.0 10.0 2.1×23
THR-12 13.5 12.0 2.2×25
THR-14 16.5 14.0 2.3×30
THR-16 18.0 16.0 2.3×30
THR-17 20.0 17.0 2.6×38
THR-18 20.5 18.0 2.6×38
THR-20 22.5 20.0 2.7×40/2.6×38
THR-22 23.5 22.0 2.9×43
THR-25 26.5 25.0 3.1×50/2.7×45
THR-30 32.5 30.0 3.5×55
THR-32 64.5 32.0 3.5×55
THR-35 38.0 35.0 3.5×60
THR-40 43.8 40.0 3.5×65
THR-50 52.8 50.0 4.2×79
