PGW Elbow Cable Gland

PRODUCT NAME:

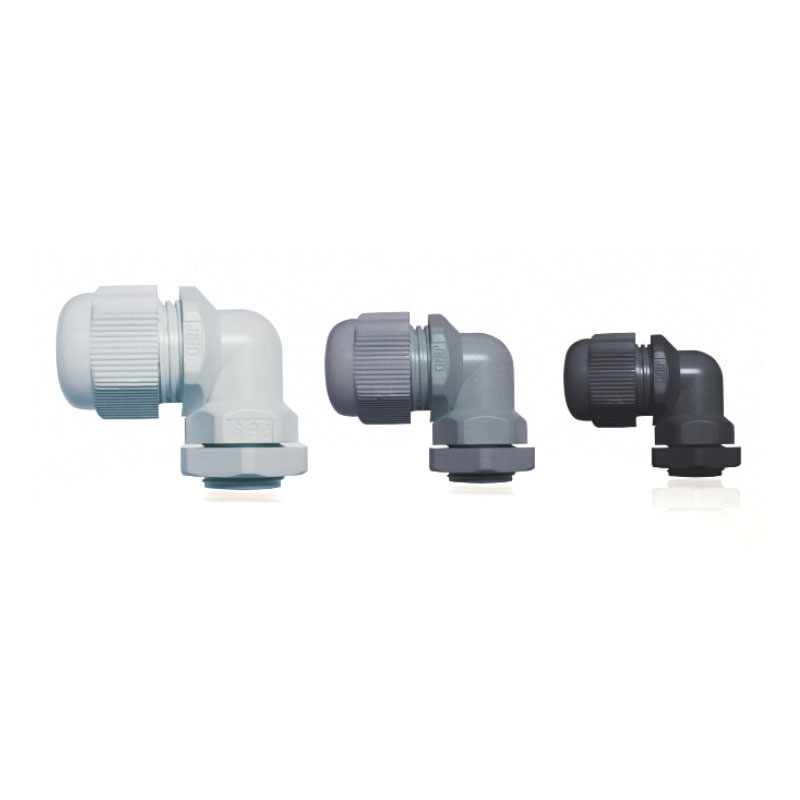

PGW Elbow Cable Gland
PRODUCT MODEL:
CONTACT US:
Tel : +008615669851253
TEL : +0086057762711310
E-mail : sales@txele.cc
Skype : DIHOOL
INQUIRY

Product Specifications

Material: Nylon Plastic (PA)
Seals: NBR
Protection Degree: IP68
Temperature Environment: Static -40℃ to 100℃, short time to 120℃; dynamic -20℃ to 80℃, short time to 120℃.

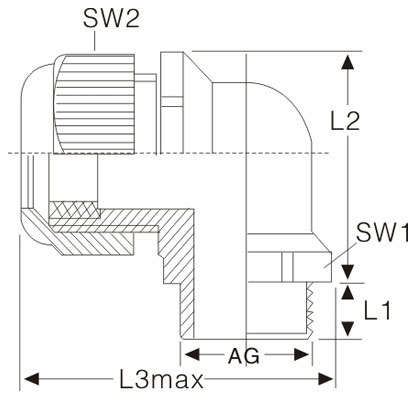

Model AG(PG) Applicable Cable mm

L1 mm

L2 mm L3 mm Sw1 mm Sw2 mm
PGW7 PG7 4-8 8 26 38.5 15 19
PGW9 PG9 5-10 8 29 47 19 22
PGW11 PG11 6-12 8 31.6 51 22 24
PGW13.5 PG13.5 10-14 9 34 54 24 27
PGW16 PG16 12-17 10 38 61 27 29
PGW21 PG21 16-21 11 45.7 71 33 36
PGW29 PG29 20-28 11 57 85 42 46
