Nylon Hammer Drive Anchor

PRODUCT NAME:

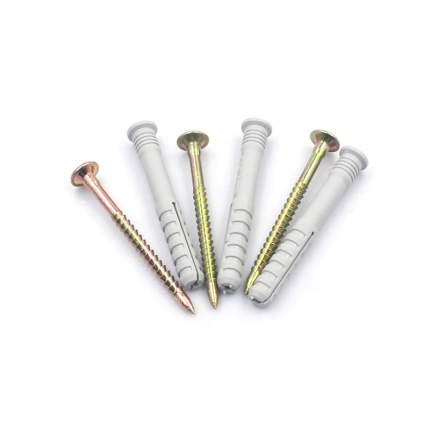

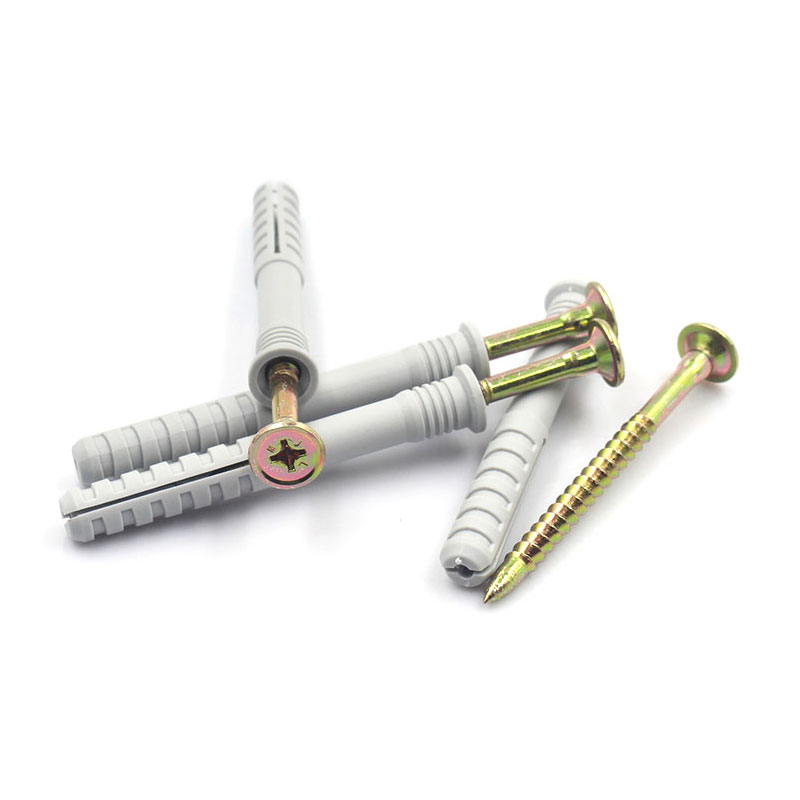

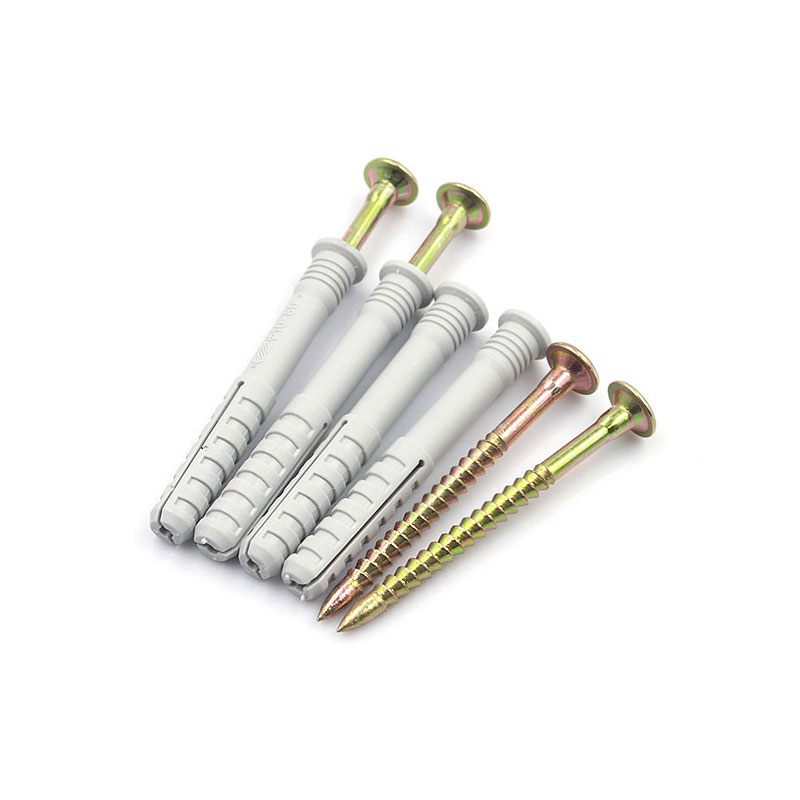

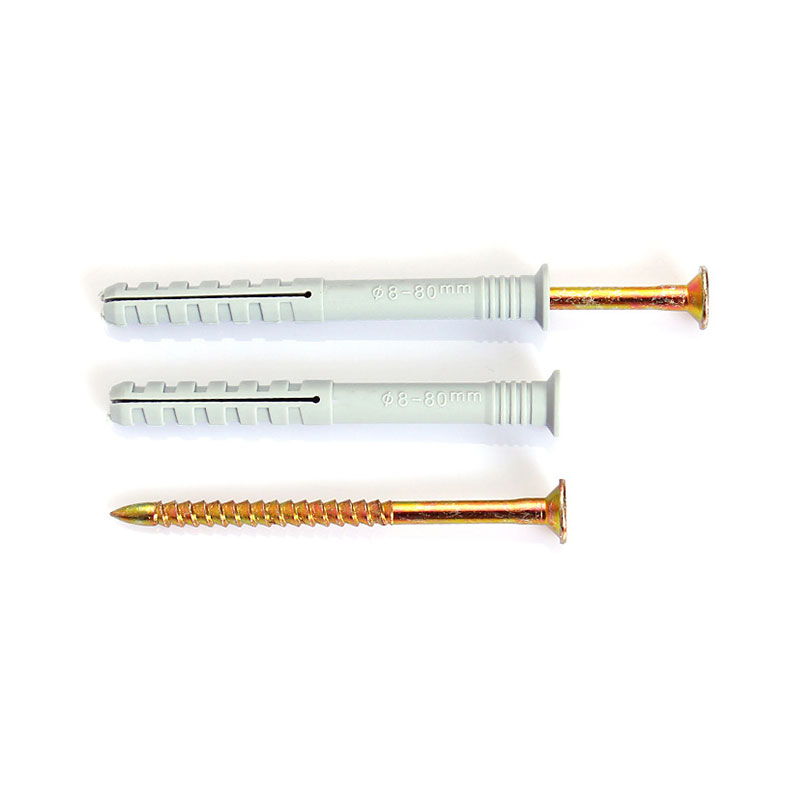

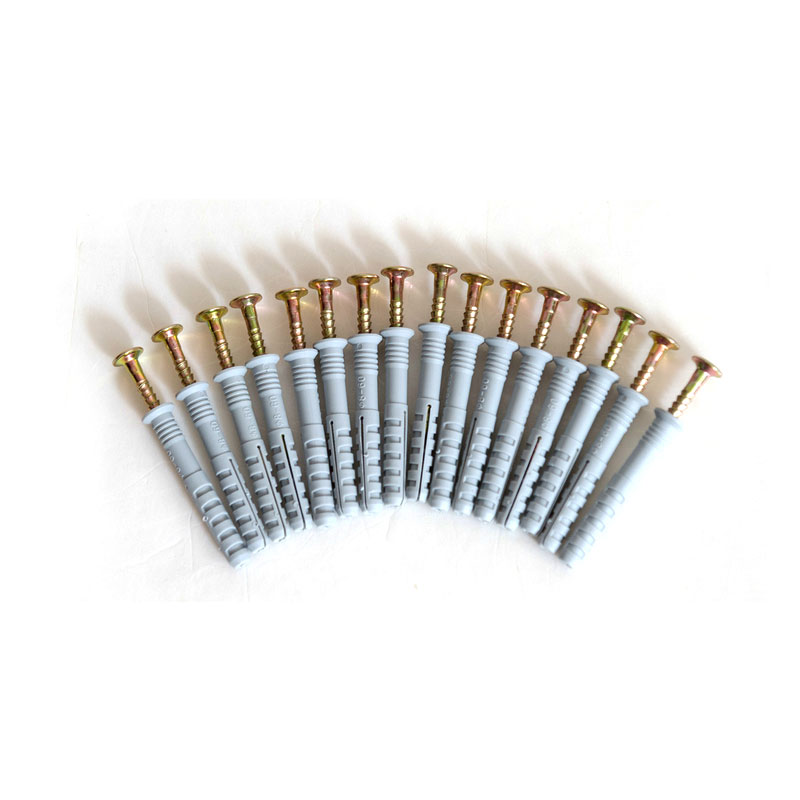

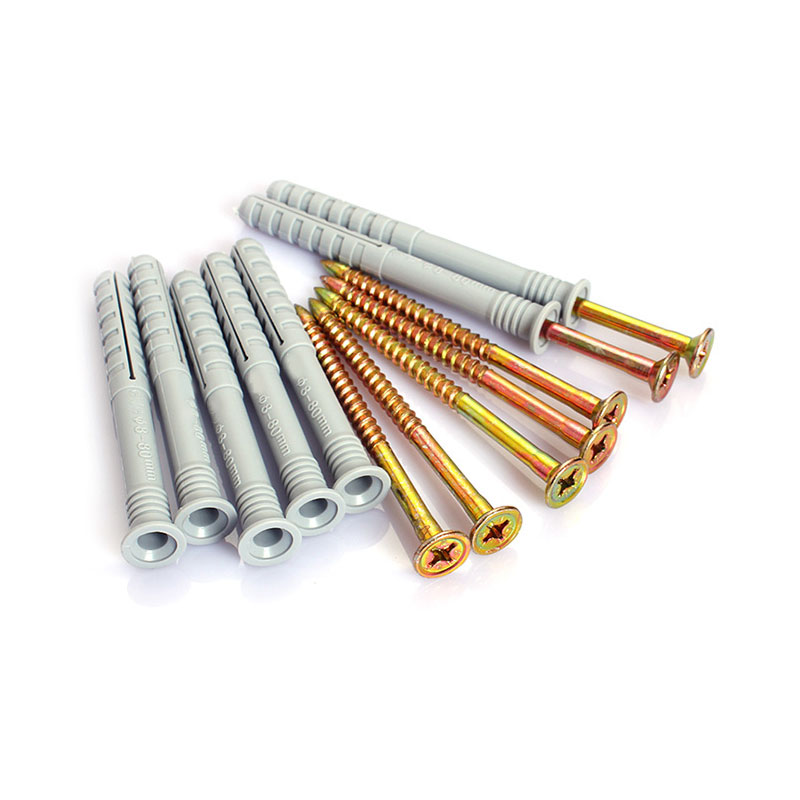

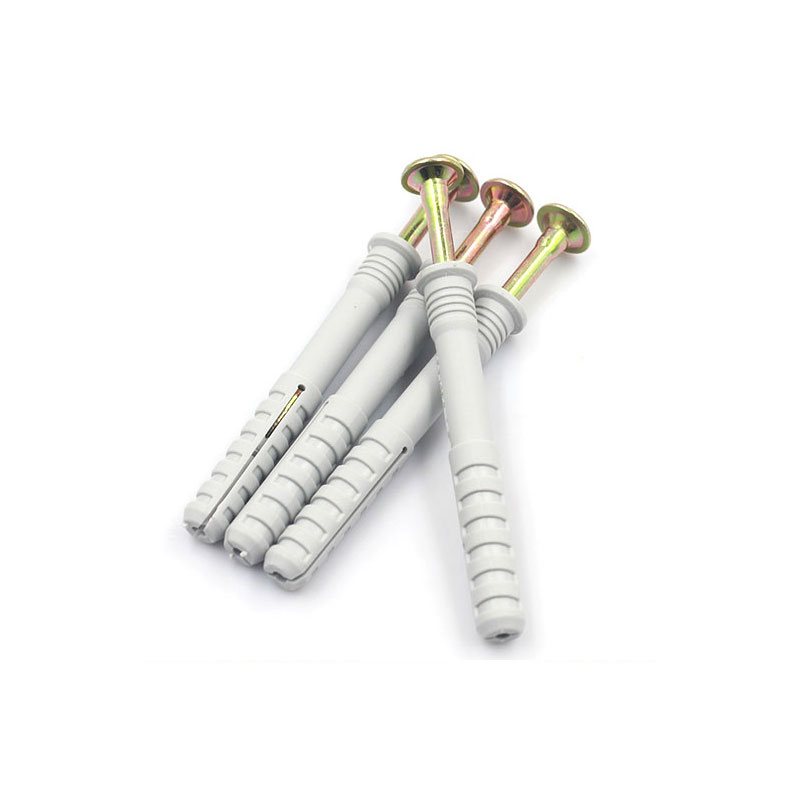

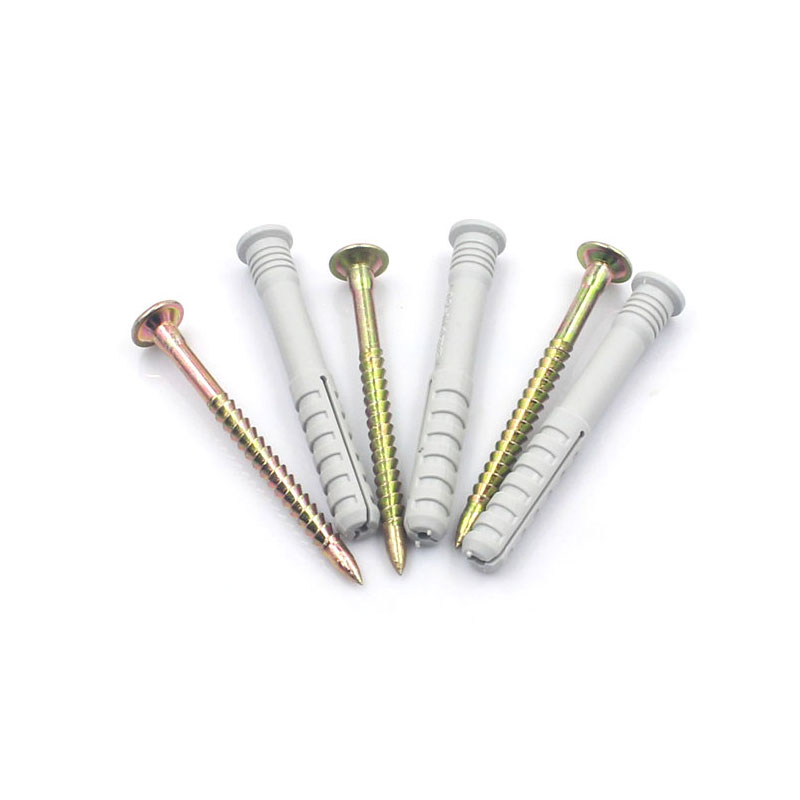

Nylon Hammer Drive Anchor
PRODUCT MODEL:
CONTACT US:
Tel : +008615669851253
TEL : +0086057762711310
E-mail : sales@txele.cc
Skype : DIHOOL
INQUIRY

Product Specifications

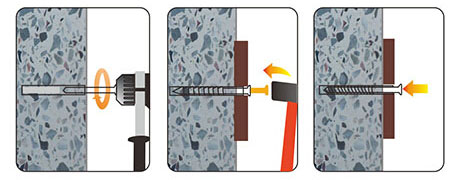

● The article consists of a nylon plug with countersunk head and a positive nail screw, yellow zinc plated. lt's suitable for fixing on concrete, blocks and other high-density material.

Item NO. Anchor Size Nail Size Drill Dia.
(mm)
Practapplic Max
(mm)
HF0530C 5×30 3.5×35 5 5
HF0535C 5×35 3.5×40 5 10
HF0540C 5×40 3.5×45 5 15
HF0545C 5×45 3.5×50 5 20
HF0550C 5×50 3.5×55 5 25
HF0635C 6×35 4.0×40 6 6
HF0640C 6×40 4.0×45 6 10
HF0650C 6×50 4.0×55 6 15
HF0660C 6×60 4.0×65 6 30
HF0670C 6×70 4.0×75 6 40
HF0680C 6×80 4.0×85 6 50
HF0850C 8×50 5.0×55 8 15
HF0860C 8×60 5.0×65 8 20
HF0880C 8×80 5.0×85 8 40
HF08100C 8×100 5.0×105 8 60
HF08115C 8×115 5.0×120 8 60
HF08135C 8×135 5.0×140 8 90
HF1080C 10×80 7.0×85 10 40
HF10100C 10×100 7.0×105 10 50
HF10120C 10×120 7.0×125 10 80
HF10140C 10×140 7.0×145 10 90
HF10160C 10×160 7.0×165 10 110
