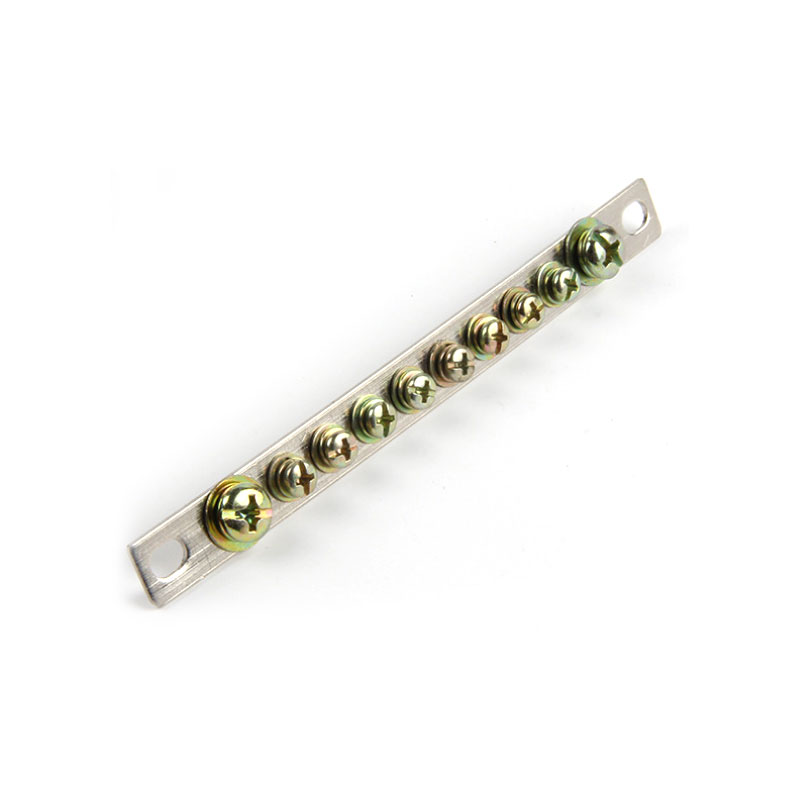

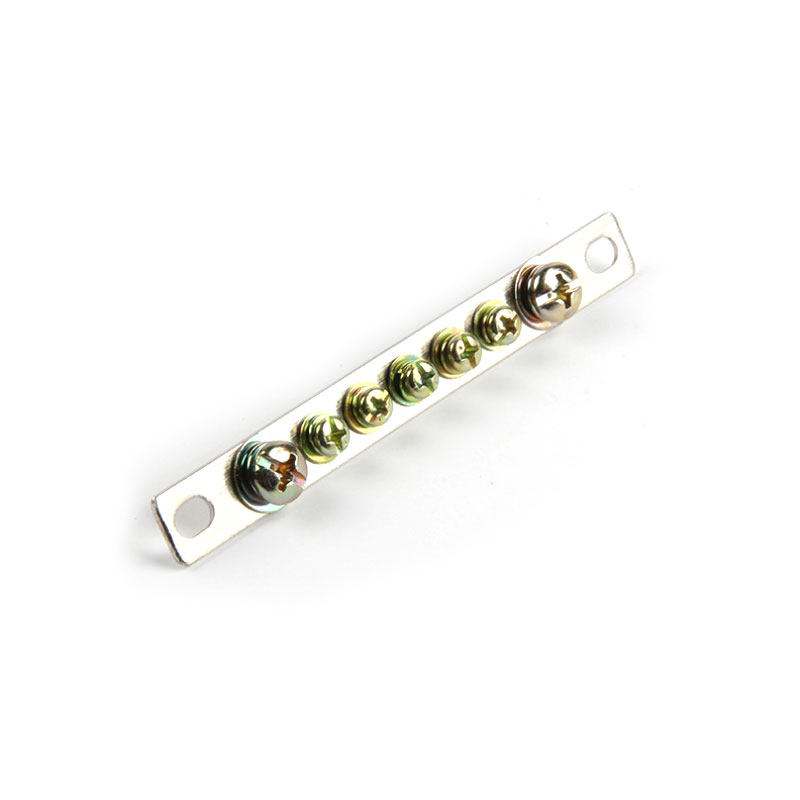

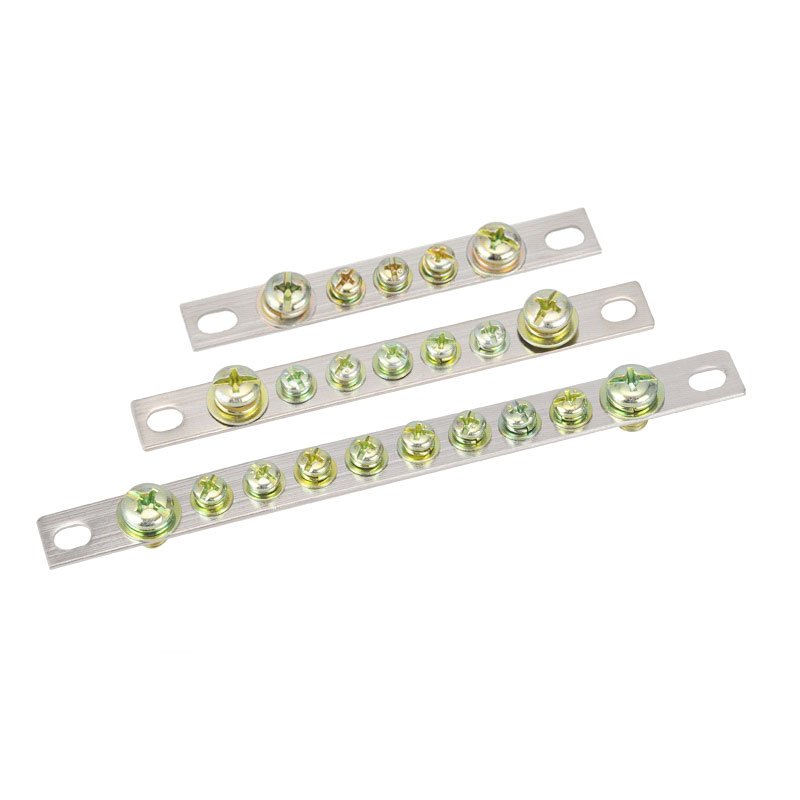

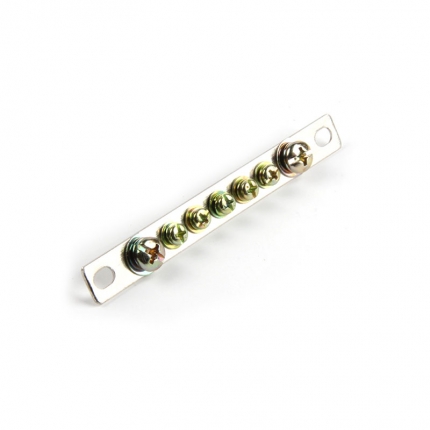

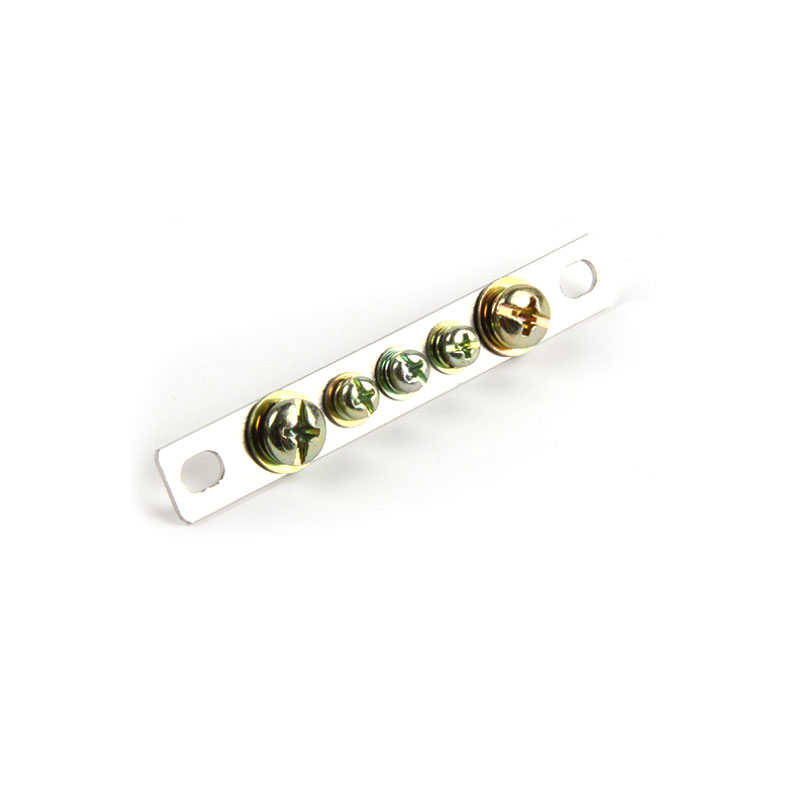

LP Zero Line Terminal Block

PRODUCT NAME:
LP Zero Line Terminal Block
PRODUCT MODEL:
CONTACT US:
Tel : +008615669851253
TEL : +0086057762711310
E-mail : sales@txele.cc
Skype : DIHOOL
INQUIRY

Product Parameter

Technical Data
Screw Torx Screw
Material Brass
Color Screw surface for colored zinc plating, copper parts surface for nickel plating
Application Generally used for power distribution cabinets, distribution boxes and a variety of high voltage cabinet

5 holes / 7 holes / 10 holes Zero Row
Brass nickel plating, not easy to oxidize
Zero row terminals is made of high quality brass, both ends use the M8 hole, the middle use the M5 hole. With high carrying capacity, easy wiring, not easy to oxidize and so on.

Technical Drawing

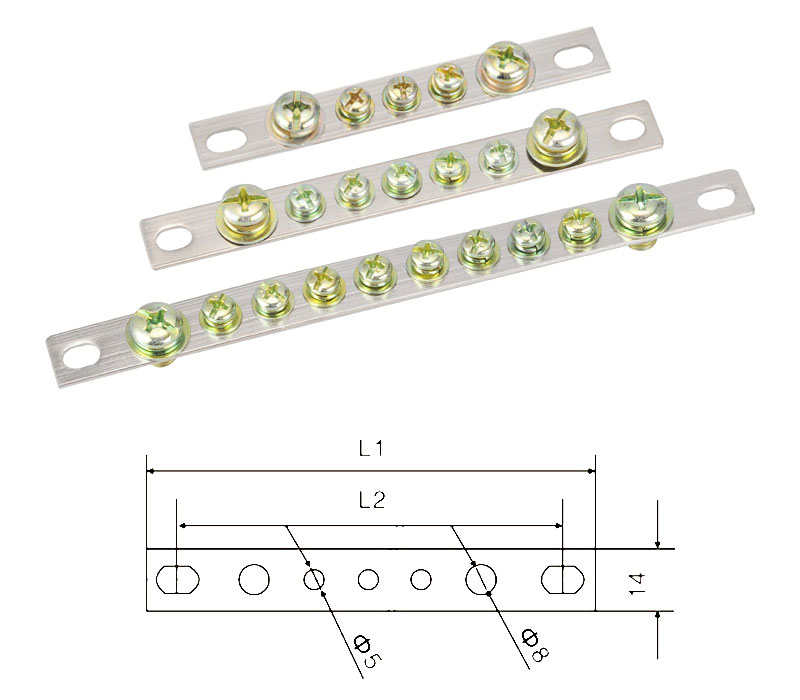

LP1514 Zero Line Terminal Block

Item No. Holes Spec. Total Length Dimension
LP1514-05 5 1.6×14 100mm 86mm
LP1514-07 7 1.6×14 124mm 110mm
LP1514-10 10 1.6×14 160mm 146mm

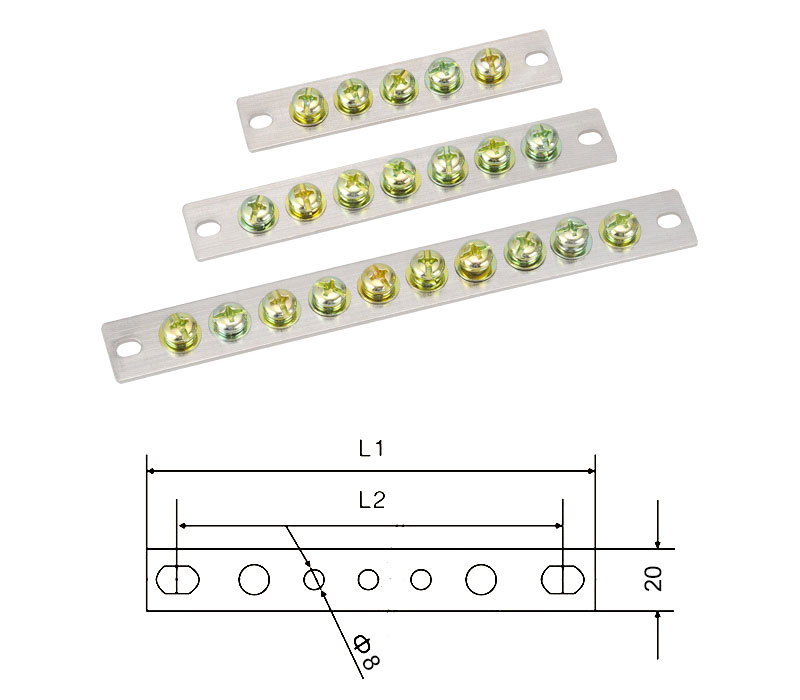

LP1820 Zero Line Terminal Block

Item No. Holes Spec. Total Length Dimension
LP1820-05 5 1.8×20 105mm 90mm
LP1820-07 7 1.8×20 135mm 122mm
LP1820-10 10 1.8×20 180mm 165mm

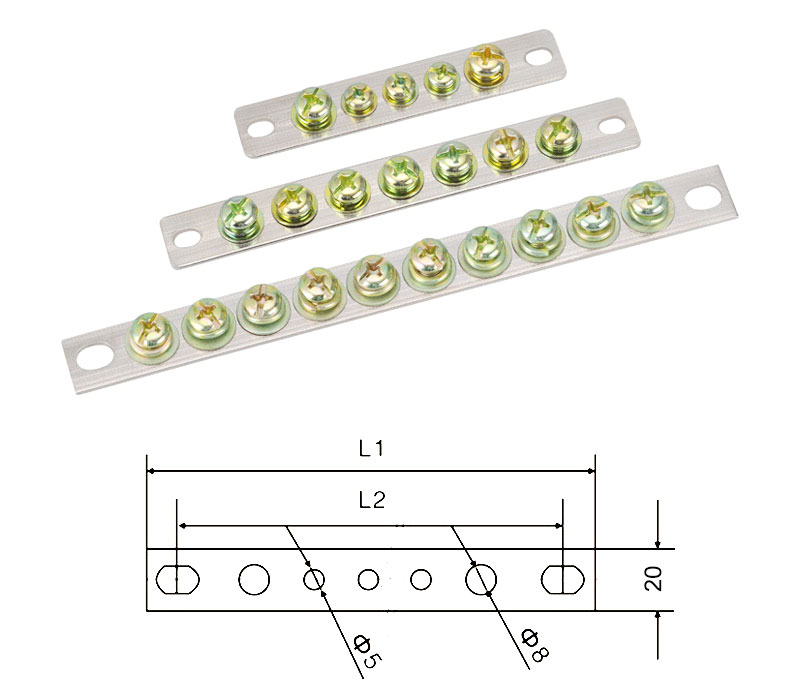

LP2025 LP2525 Zero Line Terminal Block

Item No. Holes Spec. Total Length Dimension
LP2025-05/LP2525-05 5 2.0×25 2.5×25 139mm 121mm
LP2025-07/LP2525-07 7 2.0×25 2.5×25 175mm 157mm
LP2025-10/LP2525-10 10 2.0×25 2.5×25 229mm 211mm
